Why do we need ILAP Analytics?

Modified on Tue, 12 Aug at 7:48 AM

Table of contents

Schedule Data is not Schedule Information
ILAP Analytics can
ILAP Analytics => Reporting tool for ILAP

Schedule Data is not Schedule Information

Activity, Start, Finish, Codes…….
Safran/Primavera/MS Project use extensive Business Logic to convert schedule data to schedule information
A “traditional” BI approach where schedule data is uploaded to the BI-tool fails

ILAP Analytics can

Give BI tools access to both schedule data and Business Logic
Retain a full historic record a schedule’s development for analytics
Compare schedules against each other
Build a corporate schedule library for extensive analytics

ILAP Analytics => Reporting tool for ILAP

Implemented features

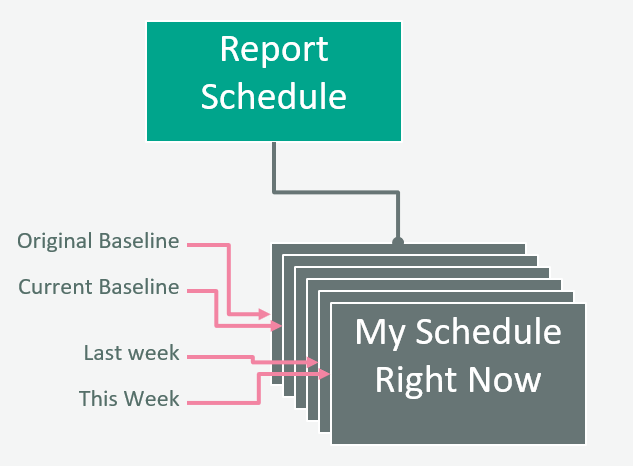

Collection of schedules

Challenge: ILAP Ontology only caters to a “single point in time” “Report Schedule” allows ILAP Analytics to track “the same” ILAP Schedule over time, thus enabling typical information demand from consumers:

Different versions of same schedule (original baseline, baseline, revised, live)
Each version over time (e g live schedule for each week)

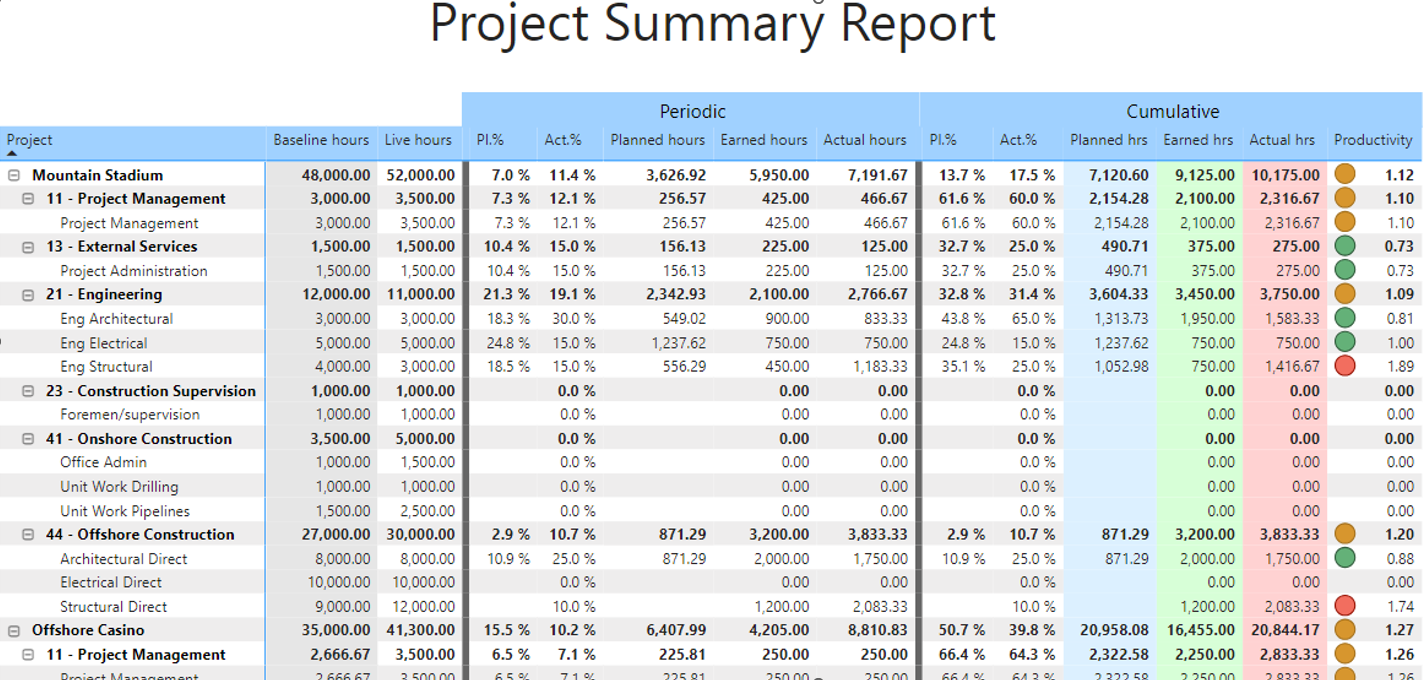

Tracking of periodic changes and actuals

Changes in total scope (planned work hours increased/decreased)
Tracking of periodical earned hours and actual hours

Periodization of planned work

Total / remaining planned work time-phased and stored periodically based on start/finish, total hours, calendars and profile

Provide data to consumers (such as data lakes)

Rest API
Graph QL endpoint

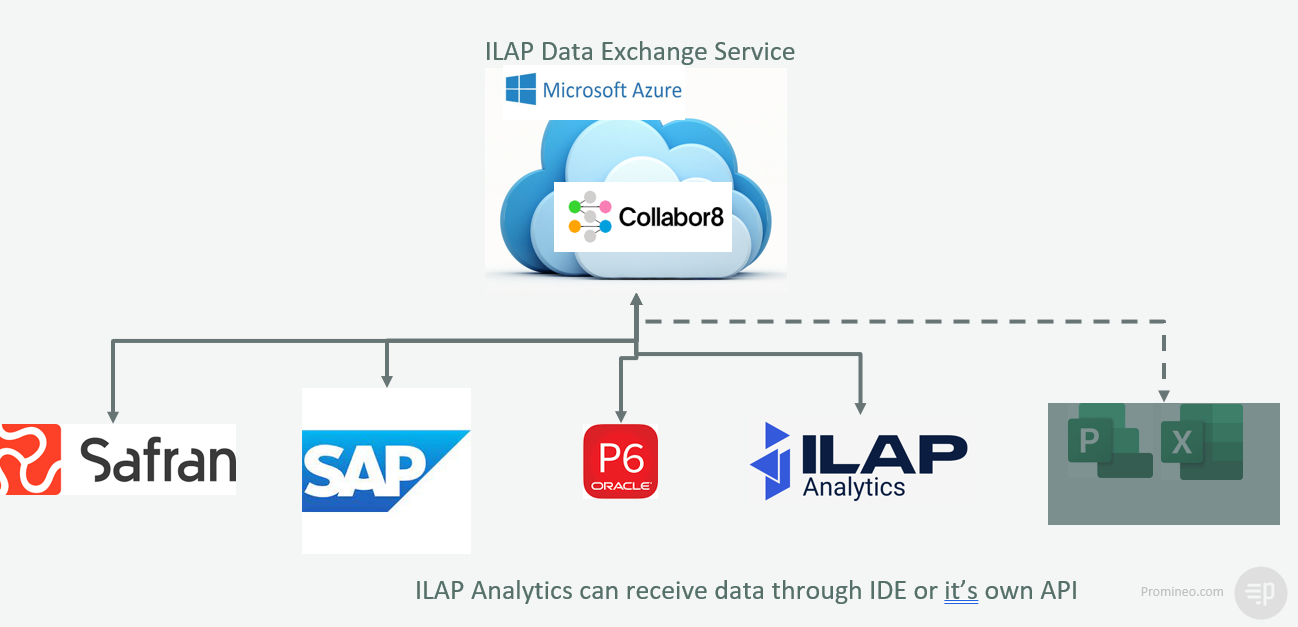

IDE supported scheduling software

ILAP Analytics is an IDE supported scheduling software

Features under development

Schedule analysis

Metrics
Attention factors

API to support delta-load

Features on roadmap

KPI tracking

Semantic representation of schedules to enable reasoning and machine learning

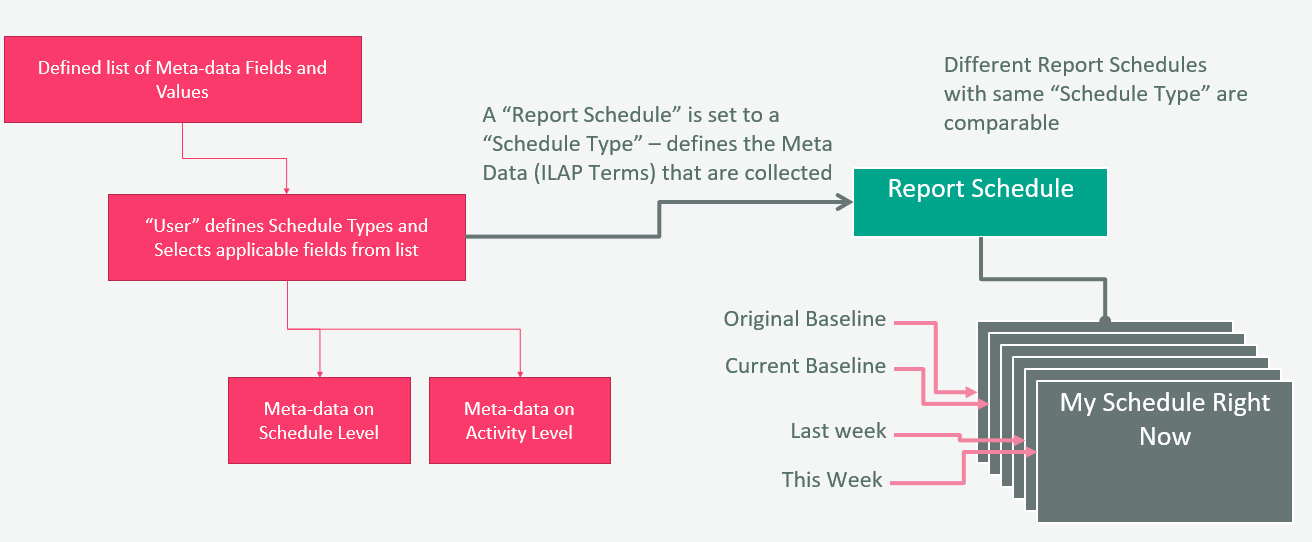

Model

Fields (aka ILAP terms)

Define which fields (including ILAP terms) are required
Fields of datatype “List” will be provided with a valid list of field values codes with descriptions

Schedule types

Enables grouping of report schedules with common characteristics and similar requirements
Allows you to define different content control of diff types of schedules

Report schedules

Collection of different versions of the same schedule
Subjected to calculations
Provides periodization of both actuals and planned values

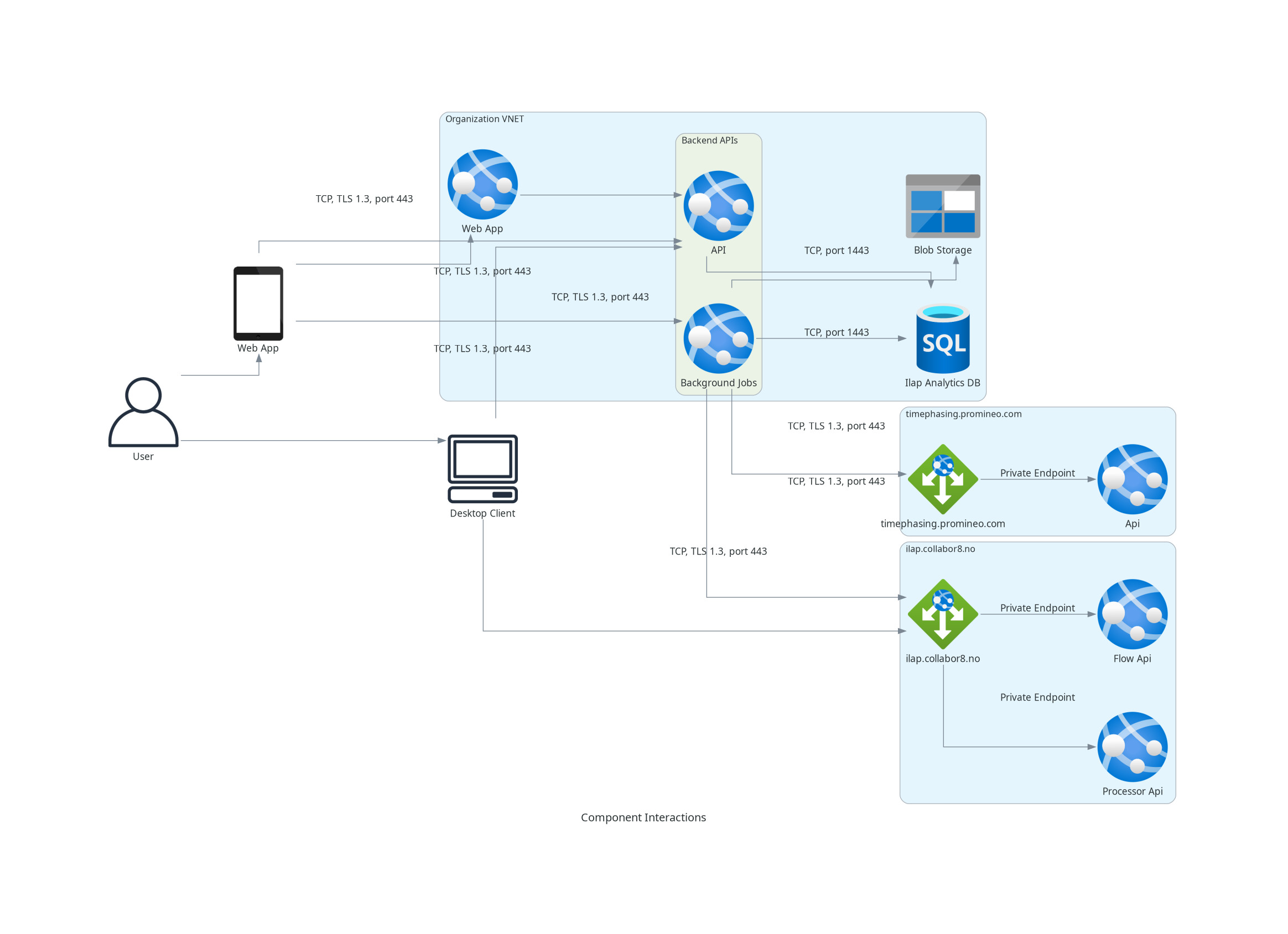

Component Interactions

The user can use both the desktop client and the ILAP Analytics single page application.
Both the desktop client and the analytics ui should be within the organization VNET or should have access to the organization VNET.
The desktop client interacts with the processor api and the flow api as part of IDE communication.
The desktop app interacts with the analytics api.
The analytics api interacts with the flow api (during startup) to fetch the ILAP terms.
The analytics api doesn’t directly interact with the background job. It inserts records int othe hangfire database.
The background job interacts with the flow api to fetch ILAP terms.
The background job interacts with the blob storage to save the ilap file
Both the analytics api and the background job interacts with the sql server time to time.

Inbound and out bound ports

TCP 443 for all the https calls.
TCP 1443 for database interaction.
UDP/TCP 53 for Azure DNS

IA-documentation

This document catalogues all parameters defined in main.sample.bicepparam, lists their default values (where provided), and explains how they configure Azure resources and behaviors.

Authentication and Authorization

Entra Id

Name	Value	Description
clientId	‘analytics_api_client_id_from_step-1’	Placeholder for the Entra Id Application (API) client ID. Replace with your API app registration’s client ID
instance	‘https://login.microsoftonline.com/’	The Entra Id authority endpoint. Defaults to the global Microsoft identity platform.
tenantId	your_tenant_id	Tenant identifier in Entra Id. Update with your directory (tenant) ID.
audience	‘analytics_api_audience_id’	The Application ID URI (audience) for token validation. Must match your API’s registered scope.

publicConfigurations

Name	Value	Description
analyticsApiUrl	‘your-ilapanalytics-api-base-url/api’	Base URL of the analytics API used by the UI. Replace with your deployed API endpoint.
authenticationAuthority	‘https://login.microsoftonline.com/your_tenant_id/’	Entra Id login URL for the UI app.
authenticationClientId	‘application client id of UI app registration’	Client ID for the UI’s Entra Id app registration.
authenticationScopes	‘comma separated scopes from your API app registration’	OAuth scopes that the UI will request for API access.
authenticationRedirectUri	‘your-ilapanalytics-ui-base-url’	Redirect URI configured in the UI app registration.

planningScheduleDeleteConfiguration

Name	Value	Description
PlanningScheduleAutomaticDeletion	false	Whether to automatically delete closed planning schedules.
PlanningScheduleRetentionPeriodInDays	7	Days to keep closed planning schedules before deletion.

reportScheduleArchiveConfiguration

Name	Value	Description
EnableReportScheduleAutomaticArchive	false	Whether to archive closed report schedules automatically.
ReportScheduleRetentionPeriodInDays	7	Days to retain closed report schedules in the live database before moving to archive.
QueryBatchSize	3000	Number of records to process per batch during archiving. Lower this to reduce load.

Core Infrastructure Parameters

Parameter	Type	Default	Description
sqlServerParams	object	secure, no default	Settings for Azure SQL Server (e.g., name, admin login, SKU).
databaseParams	object	secure, no default	Configuration for primary database (name, collation, SKU, etc.).
archiveDatabaseParams	object	secure, no default	Configuration for archive database (similar schema + settings).
appServicePlanParams	object[]	secure, no default	Array of App Service Plan definitions (one per hosting tier).
apiAppServicePlanName	string	none	Name of the App Service Plan for the API app (required).
bgAppServicePlanName	string	none	Name of the App Service Plan for background jobs (required).
webAppServicePlanName	string	none	Name of the App Service Plan for the UI (required).
webAppParams	object	no default	Object containing configuration for all web apps (API, UI, etc.).
storageAccountParams	object	no default	Settings for Azure Storage Account (name, SKU, access tier).
moveIlapFileToBlobStorage	string	‘false’	Flag (‘true’/‘false’) to enable moving files to blob storage.

API & Job Execution

flowApiBaseUrl: https://dev.ilapdataexchange.promineo.no/api/api

Parameter	Type	Default	Description
flowApiBaseUrl	string	flowApiBaseUrl	Base URL for the Flow API endpoint.
flowApiAccessToken	string	‘eyJhbGciOiJIUzI…’	JWT or similar token for authenticating to Flow API.
synchronizeFieldsJobSchedule	string	’/10 * * *’	CRON schedule for the field synchronization job.
enableFieldSyncronization	string	none	Flag to turn on/off field synchronization logic.
enableApiVersionValidation	string	none	Flag to enable API version checks.
enableFieldImport	string	none	Flag to enable importing of external fields.
SendJobStatusToIDE	string	none	Flag to send job status notifications back to the IDE.

Runtime & Deployment

Parameter	Type	Default	Description
netFrameworkVersion	string	‘v8.0’	.NET version for Windows-based App Services (e.g., IIS).
linuxFxVersion	string	‘DOTNETCORE\|8.0’	Linux runtime stack identifier for App Services.
ilapAnalyticsApiCustomDomain	string	’’	Custom domain for the API (if useAnalyticsApiCustomDomain=true).
useAnalyticsApiCustomDomain	bool	false	Flag to switch from default FQDN to custom domain for API.
instanceInformation	object	no default	Metadata about this deployment instance (e.g., ID, region).
dataValidationConfiguration	object	no default	Settings for data quality and validation rules.

Note: Parameters without default values (or marked secure) are required at deployment time. Be sure to replace all placeholder strings (e.g., ‘your_tenant_id’) with actual values from your Azure environment.
